Description
Highlights

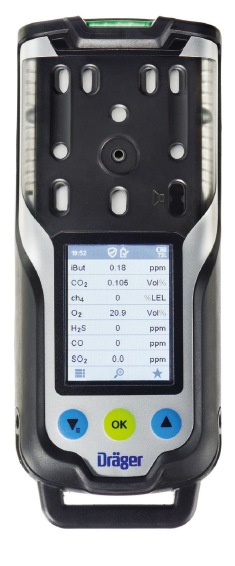

Clearance measurement was never this easy and convenient: The 1 to 7 gas detector detects toxic and flammable gases as well as vapours and oxygen all at once – either in pump or diffusion mode. Innovative signalling design and handy assistant functions ensure complete safety throughout the process.
Key Facts
|
Measurable gases
|
Ex, CO2, O2, CO, H2S, NO2, SO2, VOC (PID) + (choice out > 40 sensors)
|
|---|---|
|
Sensorports
|
5
|
|
Number of gases
|
1 – 7
|
|
Sensor technology
|
CAT + IR + PID + EC
|
Applications
|
Personal Air Monitoring
|
|
|---|---|
|
Confined Space Entry
|
|
|
Area Monitoring
|
Technical Data
|
Operation time
|
>24h
|
|---|---|
|
Dimensions (W × H × D)
|
7.7×17.9×4.2 cm
|
|
Weight
|
1.32 lb
|
|
Battery type
|
Li-Ion
|
|
Degree of protection (IP class)
|
IP 68
|
Features
|
Dual sensors
|
|
|---|---|
|
CatEx Fullrange
|
|
|
D-Light
|
|
|
Internal pump
|
|
|
X-am Pump
|
|
|
X-zone 5500 Area Monitoring
|
|
|
Bump Test Station
|
|
|
X-dock Station
|
|
|
Bluetooth
|
|
|
Bodyguard Alarm (Panic alarm, Motionless detection)
|
|
|
Smart Configuraton in Dräger Gas Detection Connect
|
|
|
Support of Dräger ConHub (Gateway)
|
Approvals
|
ATEX
|
I M1, II 1G, Ex da ia I Ma, Ex da ia IIC T4 Ga
|
|---|---|
|
IECEx
|
I M1, II 1G, Ex da ia I Ma, Ex da ia IIC T4 Ga
|
|
c CSA us
|
Class I, Zone 0, AEx da ia IIC T4 Ga, Class II, Div 1, Gr. E, F, G
|
|
CE
|
|
|
GOST (EAC)
|
PO Ex da ia I Ma X, 0Ex da ia IIC T4 Ga X
|
|
Performance approval
|
|
|
Shipping approval (MED/DNV GL)
|
